PRODUCT

GDONU300-4GE XPON SFU 4GE

GDONU300-4GEP provides industrial-grade high-reliability ONU. By optimizing software and hardware processing, it supports...

Current position:HOME > PON

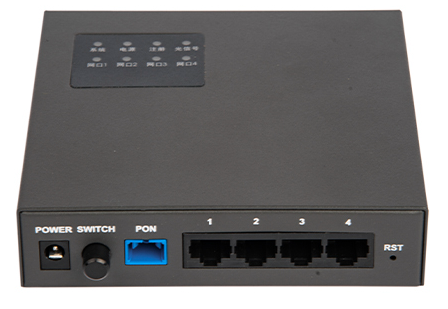

GDONU300-4GE XPON SFU 4GE

Overview        GDONU300-4GEP provides industrial-grade high-reliability ONU. By optimizing software and hardware processing, it supports lightning protection of up to 6 kV and high temperature resistance of up to 70 degrees, and supports docking compatibility with OLT of various manufacturers. What’s more, it supports Gigabit ports, and ensures smooth transmission under large burst video traffic. The metal shell has good field adaptability while ensuring heat dissipation. Features         Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
        Support Layer 2 802.1Q VLAN, 802.1P QoS
        Support IGMP V2 snooping
        Support lightning protection of up to 6 kV
        Support port loop detection
        Support port rate limit
        Support hardware watchdog
        Support bi-directional FEC
        Support dynamic bandwidth allocation function
        Support LED indication
        Support remote upgrade by olt and web
        Support factory settings restore
        Support remote reset and reboot
        Support dying gasp outage alarm
        Support data encryption and decryption
        Support sending device alarm to OLT
        supports docking compatibility with various OLT Highlights         Support docking compatibility with OLT of various manufacturers
        Support automatically adapt to the EPON or GPON mode used by the peer OLT
        Support port loop detection and rate limit
        Support lightning protection of up to 6 kV and high temperature resistance of up to 70 degrees Hardware Specifications         interface: 1* G/EPON+4*GE
        Power adapter input: 100V-240V AC, 50Hz-60Hz
        Power Supply: DC 48V/2A
        Indicator light: SYSTEM/POWER/PON/LOS/LAN1/ LAN2 / LAN3/ LAN4
        Button: Power switch Button, Reset Button
        Power Consumption: 小于72W
        Working temperature: -40℃~+70℃
        Environment humidity: 5% ~ 95% (non-condensing)
        Dimension:125mm x 120mm x 30mm (L×W×H)
        Net Weight:0.42Kg PON Interface         Interface Type: SC/APC, CLASS B+
        Transmission distance: 0~20km
        Working wavelength: Up 1310nm;Down 1490nm;
        RX Optical power sensitivity: -27dBm
        Transmission rate: GPON: Up 1.244Gbps;Down 2.488Gbps;EPON: Up 1.244Gbps;Down 1.244Gbps Ethernet Interface         Interface type:4* RJ45
        Interface parameters: 10/100/1000BASE-T Packing list         ONU * 1 PC
        Power adaptor *1 PC
        Network cable *1 PC

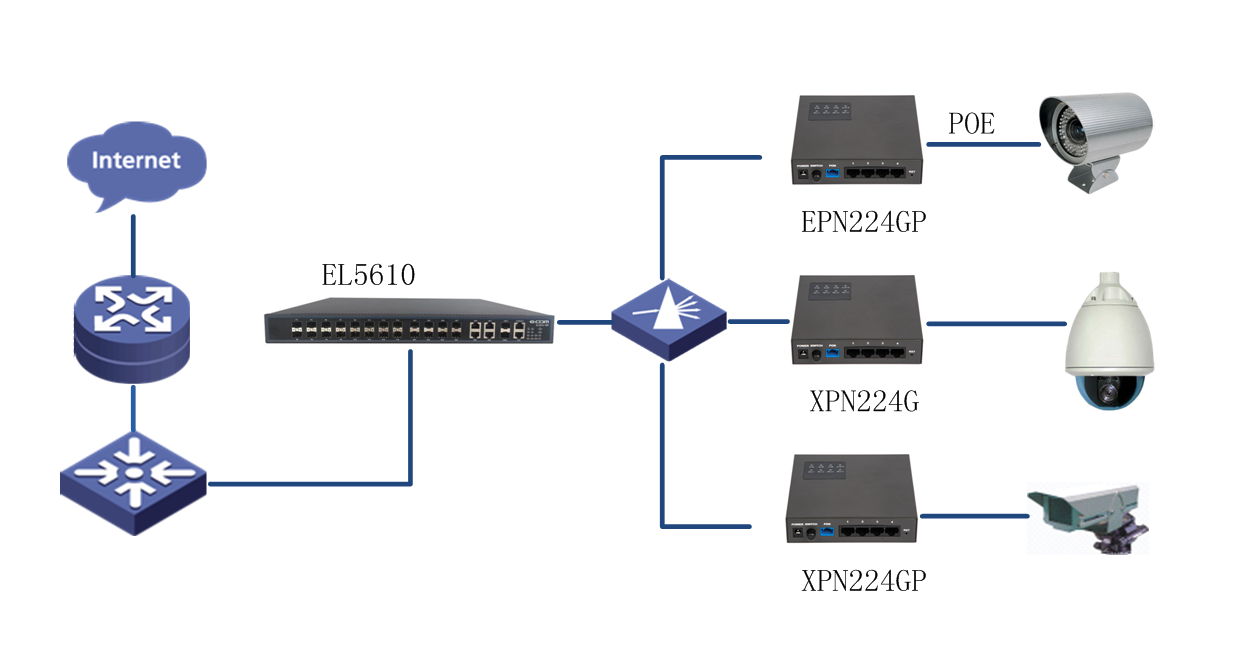

        Box *1 PC Application Scenario
