TFT1000E modular transmitter
TFT1000E modular transmitter pictures:1,state indicator: normal -> green, red -> alarm ...
TFT1000E modular transmitter
|

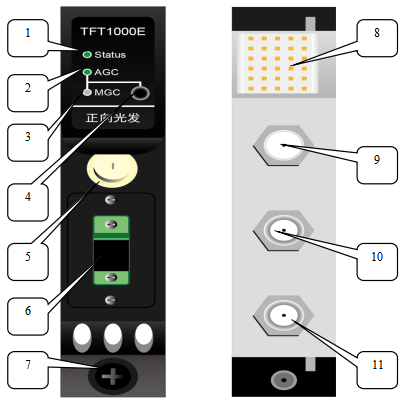

Front panel |
Rear panel |
||
|
Item |
Description |
Item |
Description |
|
1 |
state indicator: normal -> green, red -> alarm |
8 |
Connection seat: for module power supply and data communication |
|
2 |
AGC mode: green means enabled, white means disabled, default is AGC mode |
9 |
RF port CRF input test port (optical) |
|
3 |
MGC mode: green means enabled, white means forbidden |
10 |
RF port B :RF input port (optical) |
|
4 |
Button: to choose different working mode |
11 |
port A：Main RF input port |
|
5 |
Test port: generally for laser excitation level -20dB detection |
||
|
6 |
Optical interface: laser output interface, attention to strong light |
||
|
7 |
Fastening screws: fix module to frame chasis |
||
